What coverage does the H68 outdoor gateway provide?

Up to 10 km in open conditions with -140 dBm sensitivity and 20-27 dBm transmit power. Real coverage depends on terrain and antenna height — Hitelecom can estimate it from your site plan.

Which frequency bands are supported?

CN470, EU868, IN865, RU864, US915 and AU915 — covering China, Europe, India, Russia, North America and Australia deployments.

How does the gateway backhaul data?

Over 4G cellular (LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B5/B8) with MQTT uplink to Hitelecom Cloud or a private platform.

Can it really stay outdoors for years?

Yes. The IP68 enclosure is dust-tight and waterproof, and the industrial design targets long-term outdoor service.

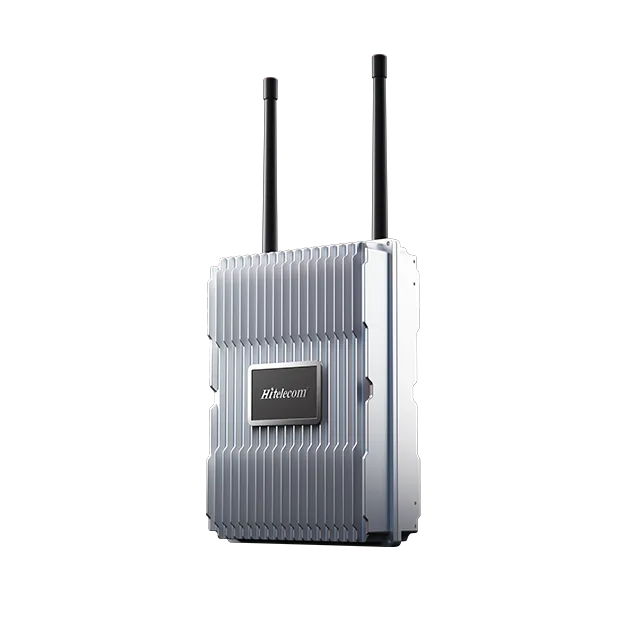

H68 Series · Outdoor Gateway

IP68 | High Capacity | Wide Coverage

The Hitelecom H68 outdoor gateway is an industrial LoRa gateway for wide-area sensor networks: up to 10 km coverage, -140 dBm sensitivity, 20-27 dBm transmit power and regional bands including CN470, EU868, US915 and AU915. The IP68 enclosure is designed for long-term outdoor service, with 4G backhaul and MQTT uplink.

Request a Quote Download Datasheet

Home / Products / Outdoor

Back to Products

Key Features

IP68 | High Capacity | Wide Coverage

Communication Range up to 10 km (Open Area)
IP68 Waterproof and Dustproof Rating
Industrial 8-Channel Full-Duplex Gateway
Supports local deployment for data control and reliability
Integrated Power Amplification and Low-Noise Amplifier Circuit
Wireless options: 4G LTE, NB-IoT, and LoRa.
Large-Capacity Networking, Remote Control and Data Acquisition
Can send a power-loss alert when backup power and backhaul remain available

Technical Specifications

The H68 series supports long-distance transmission up to 10 kilometers, reaching up to 2 kilometers within urban areas. It integrates 4G LTE, Ethernet, and Wi-Fi connectivity options to support reliable, continuous data transmission.

Specifications

H68 Series · Outdoor Gateway — Technical Specifications
Product Models	H68
Frequency Bands	CN470/EU868/IN865/RU864/US915/AU915
Distance	Up to 10 km (open area)
Transmit Power	20dBm~27dBm
Sensitivity	-140dBm@0.292Kbps
Antenna	External Fiberglass Antenna
4G band	LTE-TDD: B34/B38/B39/B40/B41; LTE-FDD: B1/B3/B5/B8
Protocol	MQTT
Operating Temperature	-40°~ +85°
Storage Temperature	-40°~ +85°
Installation	Ear mount, pole clamp, or slot mounting (varies by configuration)

Application Scenarios

New Energy

Smart park

Smart Water

Industrial Automation

Environmental monitoring

Smart city

Intelligent transportation

Logistics and Supply Chain

Applications

This product supports the following monitoring applications:

Smart parks and campuses

One rooftop gateway can collect data from many sensors across a site.
Smart water networks

Aggregates meter and level sensor traffic across a service area.
New energy sites

Covers solar farms and wind sites with long-range sensor backhaul.
Industrial automation

Plant-wide sensor collection without per-sensor SIM cards.
Environmental monitoring

River, air and noise sensor networks over wide rural areas.
Smart city lighting and assets

City-block-scale coverage for municipal sensor networks.
Logistics yards

Yard-wide tracking and condition sensors through a single gateway.

Frequently Asked Questions

What coverage does the H68 outdoor gateway provide?: Up to 10 km in open conditions with -140 dBm sensitivity and 20-27 dBm transmit power. Real coverage depends on terrain and antenna height — Hitelecom can estimate it from your site plan.
Which frequency bands are supported?: CN470, EU868, IN865, RU864, US915 and AU915 — covering China, Europe, India, Russia, North America and Australia deployments.
How does the gateway backhaul data?: Over 4G cellular (LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B5/B8) with MQTT uplink to Hitelecom Cloud or a private platform.
Can it really stay outdoors for years?: Yes. The IP68 enclosure is dust-tight and waterproof, and the industrial design targets long-term outdoor service.
